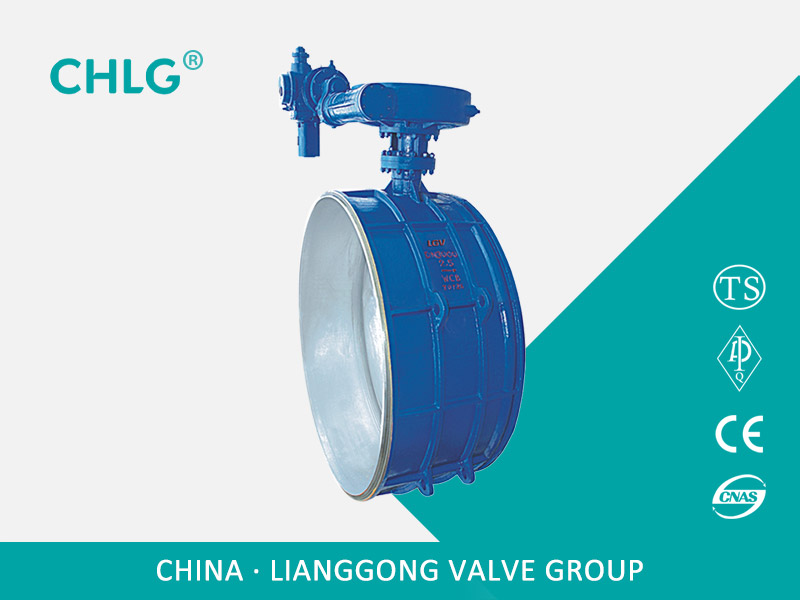

Butt Welding Butterfly Valve
  Location — Product — Butterfly valve — Butt Welding Butterfly Valve
Name:

Butt Welding Butterfly Valve

Category:

Butterfly valve

Remark:

Three eccentric two-way metal seal welding butterfly valve is widely used in water conservancy projects, water, electricity circulating water, oil, chemicals and other industrial pipe for cutting off the flow of media.

Inquiry Contact us

Product Usage

      Three eccentric two-way metal seal welding butterfly valve is widely used in water conservancy projects, water, electricity circulating water, oil, chemicals and other industrial pipe for cutting off the flow of media.


Features

1. The butterfly valve is bi-directional pressure, two-way metal seal, a special structure can be adjusted seal than the pressure, the use of eccentric S-shaped seat sealing surface, so that the sealing surface is not easy to damage and improve the service life of the valve.
2. Smaller operating torque, turn 90 degrees opening and closing, light and rapid.
3. The flow resistance is small, with good hydraulic characteristics, the flow characteristics of a straight line inclined, energy-saving effect, two-way seal on the water without direction.
4. Reliable sealing, opening and closing life of more than 25,000 times.
5. The valve plate with dual-plate truss-type multi-runner design in line with fluid mechanics.


Executive Standard

Design and manufacture of standards: GB / T 12238-2008, JB / T8527-1997
Structure length standard: GB / T 12221-2005
Connection flange standard: GB / T 9113
Pressure temperature grade: GB / T 12224-2005
Test test standards: GB / T 13927-2008


Performance parameters

Model

D363H-10

D363H-10P

D363H-10R

D363H-16

D363H-16P

D363H-16R

D363H-25

D363H-25P

D363H-25R

D363H-40

D363H-40P

D363H-40R

Work pressure(MPa)

1.0~4.0

Proper temperature(℃)

≤425

≤200

Suitable media

  Water, oil or non-corrosive media

 Nitric acid medium

Acetic acid medium

Material

 Body, disc

WCB

CF8/304

CF3M/316L

 Valve stem

2Cr13

304

316L

Body sealing surface

  Surfacing507

Butterfly sealing surface

304+flexible graphite

304+PTFE

304+PTFE

Filler

Flexible graphite

PTFE

PTFE





The main shape and connection size

Nominal diameterDN(mm)

L

1.0MPa

1.6MPa

H1

H

H1

H

100

190

280

390

280

390

125

200

300

420

300

420

150

210

320

460

320

460

200

230

370

550

370

550

250

250

420

620

420

620

300

270

500

750

500

750

350

290

530

800

530

800

400

310

570

870

570

870

450

330

600

920

600

920

500

350

680

1040

680

1040

600

390

750

1190

750

1190

700

430

810

1290

810

1290

800

470

905

1440

905

1440

900

510

960

1550

960

1550

1000

550

1010

1650

1010

1650

1200

630

1175

1920

1175

1920

1400

710

1310

2170

1310

2170

1600

790

1460

2440

1460

2440

1800

870

1560

2650

1560

2650

2000

950

1670

2860

1670

2860

Nominal diameterDN(mm)

L

2.5MPa

4.0MPa

H1

H

H1

H

100

190

280

390

280

390

125

200

300

420

300

420

150

210

320

460

320

460

200

230

370

550

370

550

250

250

420

620

420

620

300

270

500

750

500

750

350

290

530

800

530

800

400

310

570

870

570

870

450

330

600

920

600

920

500

350

680

1040

680

1040

600

390

750

1190

750

1190

700

430

810

1290

/

/

800

470

905

1440

/

/

900

510

960

1550

/

/

1000

550

1010

1650

/

/

1200

630

1175

1920

/

/

1400

710

/

/

/

/

1600

790

/

/

/

/

1800

870

/

/

/

/

2000

950

/

/

/

/

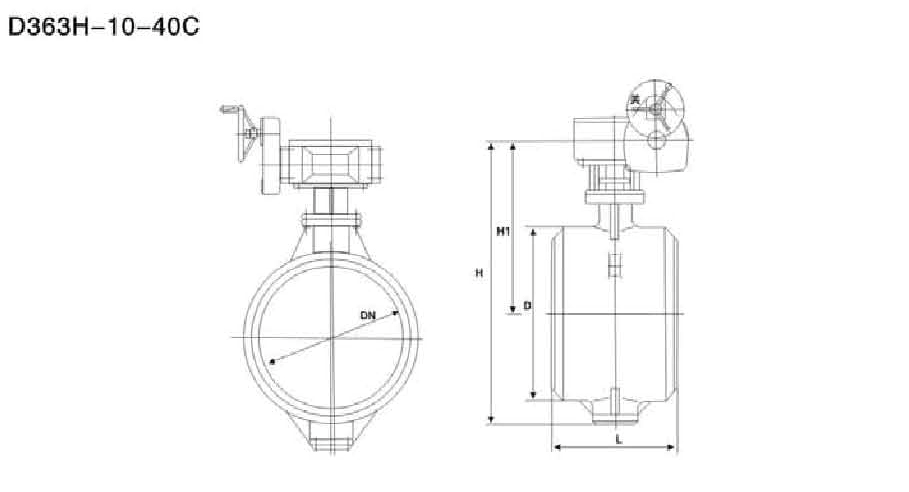

Structure picture
