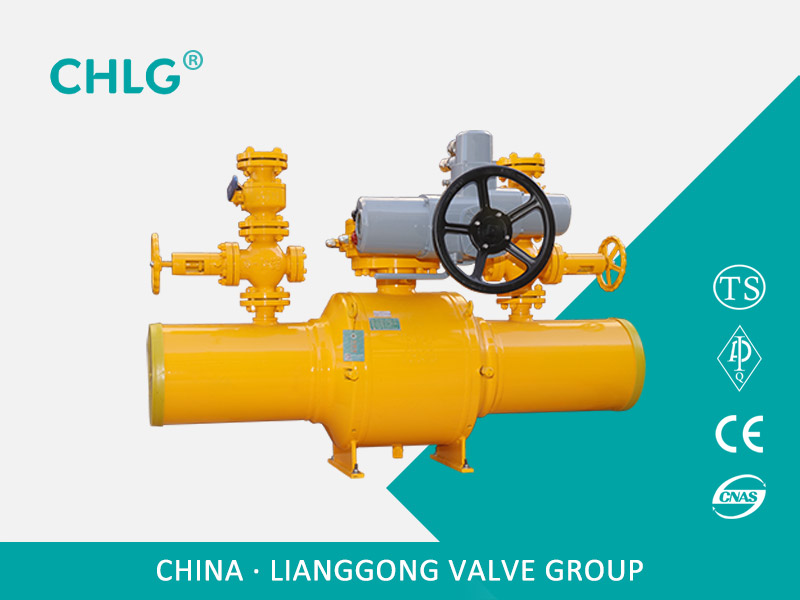

Electric Gas Ball Valve
  Location — Product — Ball valve — Electric Gas Ball Valve
Name:

Electric Gas Ball Valve

Category:

Ball valve

Remark:

Q961F type PN1.6-PN2.5 electric all-welded ball valve is widely used in various fields, its superior quality and high-performance stability of the ordinary cast steel ball valve can not be achieved, all-welded ball valve life is much larger than the cast Ball valves, all-welded ball valves are widely used in urban gas, city heating, petrochemical, shipbuilding, steel, pressure regulating stations, power plants and other types of pipeline equipment.

Inquiry Contact us

Product Usage

Q961F type PN1.6-PN2.5 electric all-welded ball valve is widely used in various fields, its superior quality and high-performance stability of the ordinary cast steel ball valve can not be achieved, all-welded ball valve life is much larger than the cast Ball valves, all-welded ball valves are widely used in urban gas, city heating, petrochemical, shipbuilding, steel, pressure regulating stations, power plants and other types of pipeline equipment.


Features

1. All-welded ball valve, there will be no external leakage and so on. Sphere processing has advanced computer detector tracking test, so the ball of high precision machining.

2. As the valve body material with the same pipe material, there will be no uneven stress, it will not be due to earthquakes and vehicles through the ground when the deformation, the pipeline anti-aging.

3. The sealing ring body is made of RPTFE with 25% carbon content to ensure no leakage (0%) at all.



skills requirement

1, design and manufacture according to the provisions of API 6D.

2, the valve inspection and testing in accordance with the provisions of API 598.

3, the length of the valve structure according to the provisions of GB / T12224-2005.

4, the connection size according to the provisions of GB / T12224-2005.

5, pressure - temperature benchmark according to the provisions of ASME B16.34.

6, the valve mark according to the provisions of GB / T12220.

7, the valve sulfur by NACE MR 0175 requirements.





Parts of the product material

Serial number

Name

Material

Serial number

Name

Material

1

Cap

ASTM A105

21

Thrust bearings

PTFE

2

Body

ASTM A105

22

 Slide bearings

304+PTFE

3

 Sphere

ASTM A105+ENP

23

On the support seat

ASTM A105

4

 Anti-static spring

  Assembly

24

O-ring

VITON

5

Thrust bearings

PTFE

25

O-ring

VITON

6

 Slide bearings

304+PTFE

26

Y-ring

VITON

7

 Lower stem

ASTM A105

27

 Fire pad

SS304+graphite

8

 Bottom cover

ASTM A105

28

  Filler

Graphite

9

Drain valve

ASTM A105+ENP

29

 Socket head cap screws

ASTM A193 B7

10

O-ring

VITON

30

 Socket head cap screws

ASTM A193 B7

11

Fire pad

SS304+graphite

31

 Valve stem

ASTM A182 F6a

12

 Socket head cap screws

ASTM A193 B7

32

Cylindrical pin

35

13

 Footsteps

A3

33

Studs

ASTM A193 B7

14

Seat

PPL

34

  Nut

ASTM A194 2H

15

 Seat fire pad

SS304+graphite

35

Spring washer

65Mn

16

Spring support seat

ASTM A105

36

 Land

ASTM A105

17

Spring

17-7PH

37

Flat key

45

18

O-ring

VITON

38

Electric Actuator

ASTM A105-HZn

19

  Seat support ring

ASTM A105+ENP

39

Vent valve

ASTM A105-HZn

20

 Slide bearings

304









Main connection size

Q961F/Q961F-Q941F/Q941F  PN16/PN25/PN40

DN

L(RF)

L(WE)

D1

D2

H1(Handle)

H1( Turbine)

W(Handle)

W( Turbine)

15

150

210

27

48

64

-

129

-

20

160

230

34

60

76

-

159

-

25

180

230

42

76

85

-

159

-

32

200

260

48

89

95

-

245

-

40

230

300

60

89

124

-

245

-

50

270

300

76

114

162

-

30

-

65

280

300

89

140

175

-

320

-

80

300

325

114

168

192

169

450

-

100

350

325

141

203

205

183

450

230

125

350

350

168

219

225

203

450

230

150

400

400

219

273

245

224

1000

230

200

502

521

273

351

285

262

1000

320

250

568

560

325

426

348

322

1500

350

300

648

635

377

508



355



350





Q967F/Q947F  PN16/PN25/PN40

DN

L(RF)

L(WE)

D1

D2

H1

H2

W

150

403

457

219

273

246

193

280

200

502

521

273

351

285

238

320

250

568

560

325

426

323

278

320

300

648

635

377

508

365

315

400

350

762

762

426

580

410

370

400

400

838

838

480

675

457

425

450

450

914

914

530

740

495

465

450

500

991

991

630

805

540

495

500

600

1143

1143

735

975

640

580

500

700

1346

1346

830

1130

715

660

500

800

1524

1524

930

1270

785

730

500

900

1727

1727

1036

1425

860

820

800

1000

1900

1840

1236

1625

970

920

800

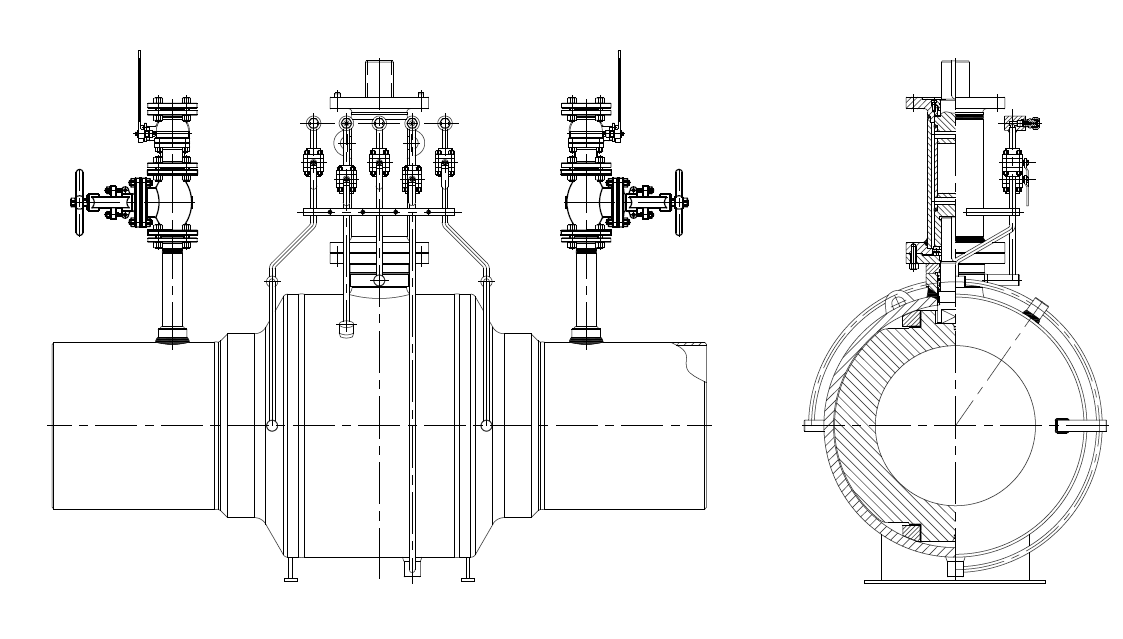

Structure picture
