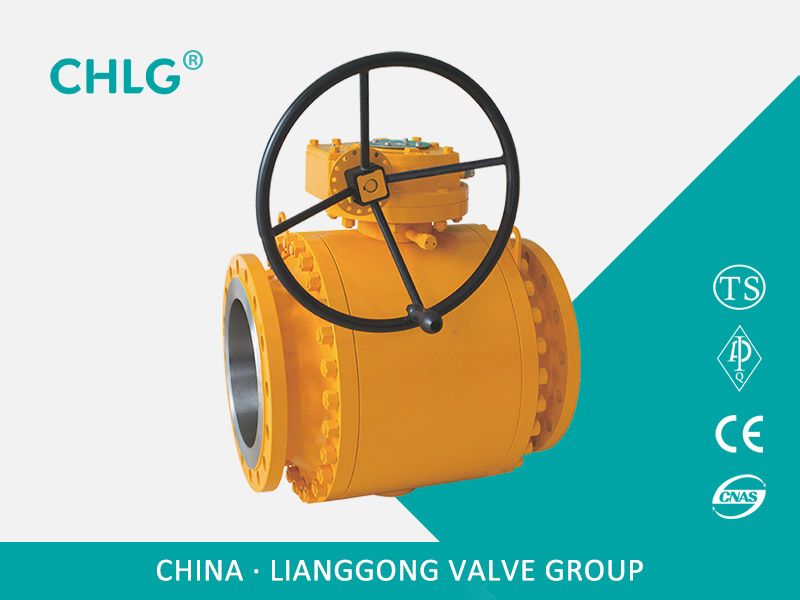

Turbine Flange Ball Valve
Name:

Turbine Flange Ball Valve

Category：

Ball valve

Remark:

Q347F type PN16 ~ PN64 forged steel fixed ball valve is used in various pipelines of Class150 ~ Class1500, PN16 ~ PN64, JIS10K ~ JIS20K, used to cut off or connect the medium in the pipeline, choose different materials, can be suitable for water respectively , Steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing media, urea and other media.

Inquiry Contact us
【Product Usage】
Q347F type PN16 ~ PN64 forged steel fixed ball valve is used in various pipelines of Class150 ~ Class1500, PN16 ~ PN64, JIS10K ~ JIS20K, used to cut off or connect the medium in the pipeline, choose different materials, can be suitable for water respectively , Steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing media, urea and other media.

【Features】
1. Among the various valves, the flow resistance of the ball valve is the smallest. When the full-diameter ball valve is opened , the diameter of the ball channel, the valve body channel and the connecting pipe are equal and form a diameter, and the medium can flow almost without loss
2. The ball valve can be fully closed and fully opened by rotating 90 °, opening and closing quickly. Compared with the gate valve and globe valve of the same specification , the ball valve is small in size and light in weight, which is convenient for pipeline installation

【Performance parameters】
Working pressure (MPa)
1.6 ~ 25.0
Applicable temperature (℃)
≤180
Applicable medium
Water, steam, oil
Weak corrosive medium
material
Valve body, bonnet
Carbon steel cast steel
Chrome nickel stainless steel
Ball, stem
Chromium / chrome nickel / chromium nickel molybdenum stainless steel
Chrome nickel stainless steel
Sealing ring
Flexible graphite washer / 316 + flexible graphite washer
filler
Polytetrafluoroethylene
